36" x 72" Linear Shower Kit

Left or Right Linear Drain Shower Pan & Installation Accessories
Choose Your Linear Drain Style
SKU: KLS-3660-LR-KIT


Sold out

Free Shipping is for continental US only.
For Alaska, Hawaii, Canada, Mexico and the Caribbean please call:
(912) 352-0442 or (866)912-3211.

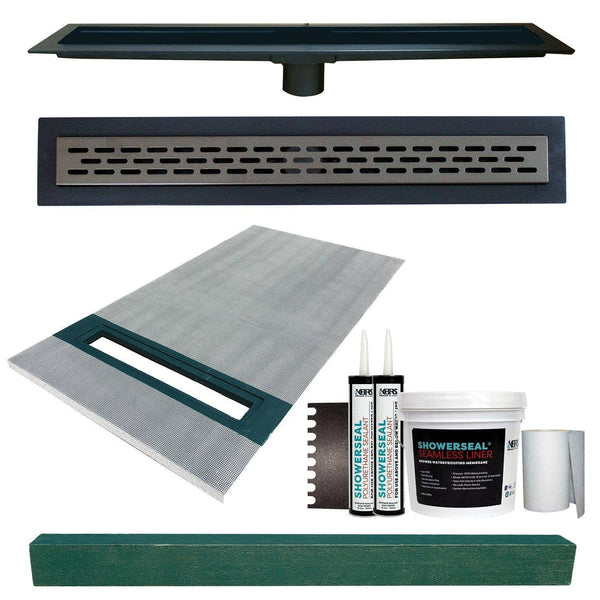

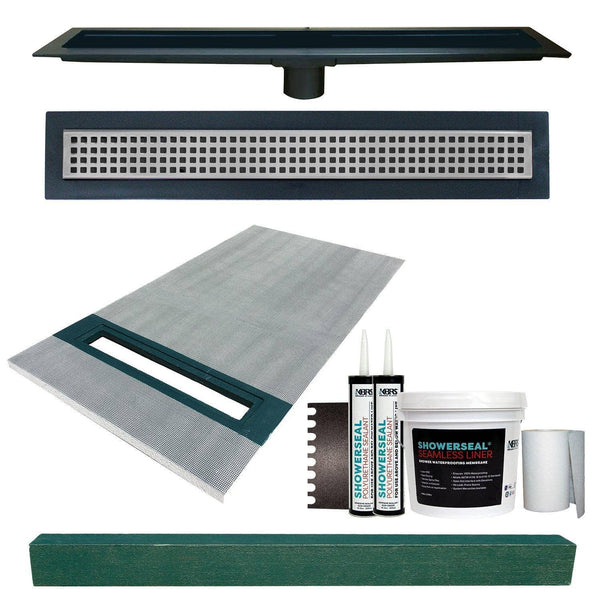

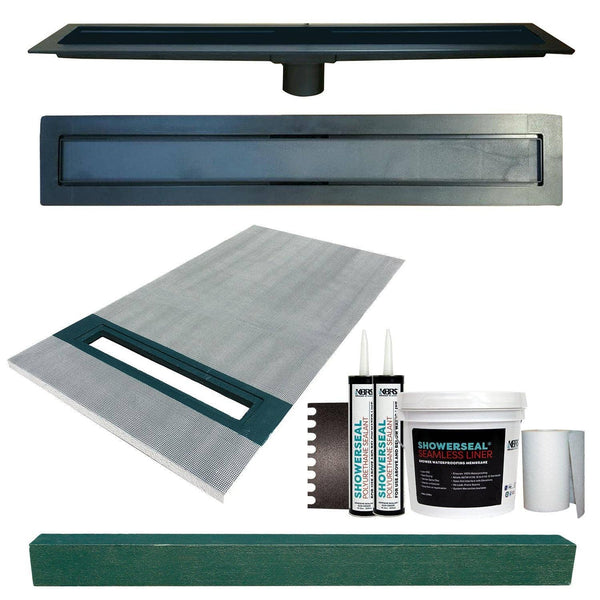

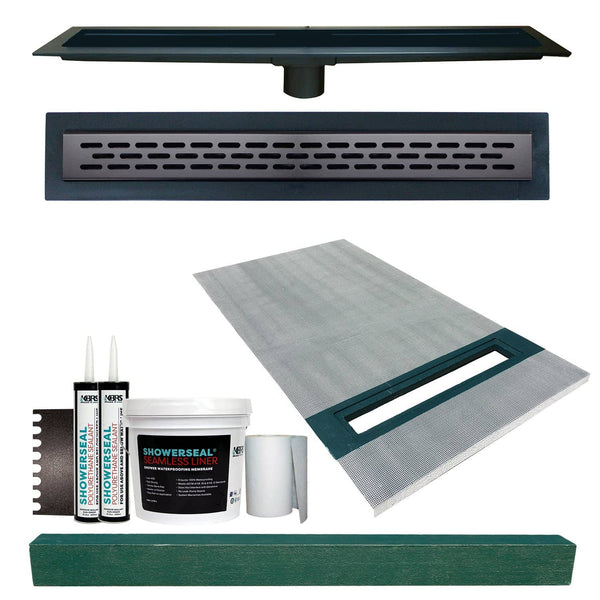

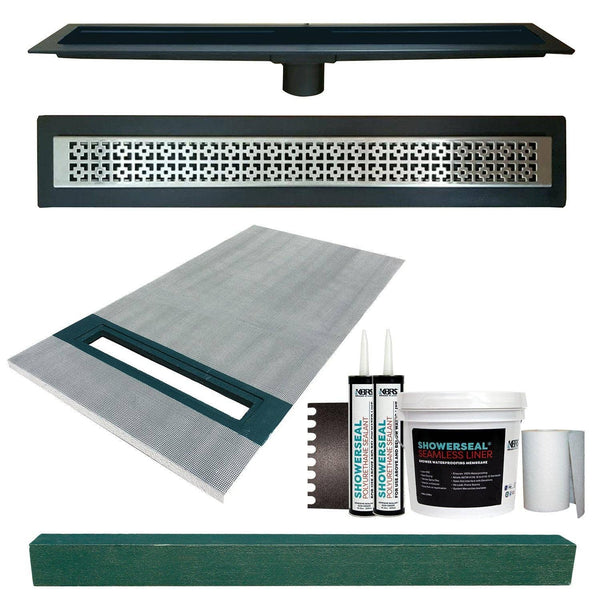

INCLUDED IN KIT:
36" x 72" Adjustable ShowerSlope™, 4" x 4" x 61" Adjustable HardCurb®,
ShowerSeal® Waterproofing Pack, 24" Linear Drain Grate, 26" Linear Drain ABS Body, and Trowel


CUSTOM LINEAR SHOWER OPTIONS:
Scroll down to download a custom linear shower order form.
Custom Linear Shower Pans are not available as kits, but additional accessories can be purchased separately.
To quote a custom linear shower pan, please submit an order form.

+ Description

ABOUT THE LINEAR SLOPE KIT
The KBRS Linear Line is a rock-solid alternative to a field-sloped mortar bed. Once installed, the Linear ShowerSlope™ can be waterproofed using either a liquid-applied or bonded sheet-applied positive side membrane. Our linear shower pans are lightweight, yet will provide the superior strength and durability necessary for a successful tile shower installation.

WHATS IN THE KIT
• QTY 1 Cut-To-Fit / Adjustable Linear Shower Pan

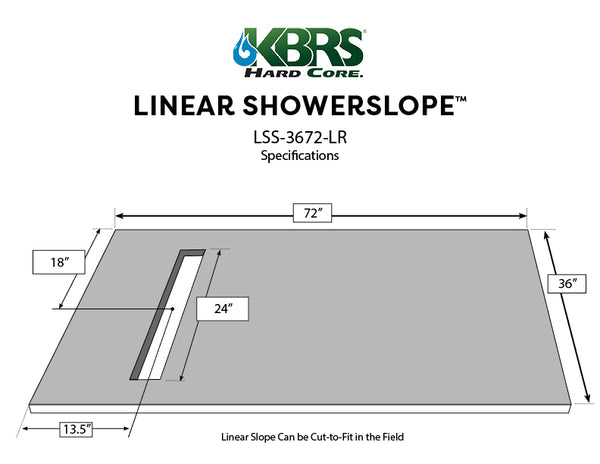

    ShowerSlope™ Size - 36" x 72" (View Specs)
• QTY 1 Cut-to-Fit / Adjustable KBRS HardCurb®
    HardCurb® - 4" x 4" x 61" (View Specs)
• QTY 1 KBRS Shower Waterproofing Kit
    ShowerSeal® Seamless Liquid Liner Membrane (1 GAL. 50 S/F Coverage)
    ShowerSeal® Polyurethane Sealant 2 - 10.1 OZ. Tubes
    ShowerSeal® Gauging Fabric 6" x 75' Roll
• QTY 1 Linear Shower Drain
    Choose Your Linear Drain Option
• QTY 1 3/4" U-Notched Trowel (For Thin-Set Application)
    DO NOT USE PREMIXED THIN-SET
    USE ONLY QUALITY MODIFIED THIN-SET (not included)

ABOUT THE HARDCURB®
The KBRS HardCurb® (patented) is a real problem solver. When a tile shower curb is constructed using wood 2x4s or hollow pre-fabricated curbs, the screws that penetrate the curb to hold the shower’s glass enclosure in place can cause water leaks and curb swelling resulting in water damage and “tile-pop”. A KBRS HardCurb® has a solid EPS core that won’t allow leaks or swelling.

ABOUT THE WATERPROOFING
ShowerSeal® is a family of KBRS waterproofing products that when used together create a completely seamless water barrier for the entire shower. While all KBRS, Tile-Basin® shower bases are already pre-coated with our leak-free ShowerSeal® waterproofing membrane, using the KBRS ShowerSeal® family of products while installing your shower adds the highest level of waterproofing available for a leak-free shower installation that’s second to none.

+ Specifications

Select Your Drain:

24" Ready to Tile-In Linear Drain Grate with 26" ABS Drain Body (View Specs)
24" Mission Stainless Steel Linear Drain Grate with 26" ABS Drain Body (View Specs)
24" Mission Oil Rubbed Bronze Linear Drain Grate with 26" ABS Drain Body (View Specs)
24" Oval Stainless Steel Linear Drain Grate with 26" ABS Drain Body (View Specs)
24" Oval Oil Rubbed Bronze Linear Drain Grate with 26" ABS Drain Body (View Specs)
24" Oval Polished Stainless Steel Linear Drain Grate with 26" ABS Drain Body (View Specs)
24" Square Polished Stainless Steel Linear Drain Grate with 26" Drain Body (View Specs)
24" Square Stainless Steel Linear Drain Grate with 26" ABS Drain Body (View Specs)


+ Benefits

Why Choose KBRS ShowerSeal® Liquid Linear:

  • Fast & Easy Installation
  • Waterproofing Pack Included
  • No Sheet Liner to Puncture & Leak
  • Cut-to-Fit in the Field
  • Linear Drain Body & Grate Included
  • Trowel Included
  • Use Common Modified Thin-set
  • Will Support Glass Block Walls

+ Installation

IMPORTANT: Linear drains are most commonly placed against the end or side wall or shower threshold; however they can be placed anywhere as long as there is a 1/4” per square foot slope to the drain. (Check with your local plumbing industry standards when attaching linear drain to existing plumbing).

The KBRS Linear Shower Pan Kit provides the required positive floor drainage in a tile shower assembly that will be utilizing a linear style shower drain. The KBRS Linear Line is a rock-solid alternative to a field-sloped mortar bed. Once installed, the Linear ShowerSlope™ can be waterproofed using either a liquid-applied or bonded sheet-applied positive side membrane. Our linear shower pans are lightweight, yet will provide the superior strength and durability necessary for a successful tile shower installation. KBRS Linear Line shower pans are easily installed using modified thin-set mortar. Linear shower pans are available in standard sizes and unlimited custom sizes (up to 9500 square inches). The KBRS Linear ShowerSlope™ comes with a 1-1/4" leading edge that is designed with a linear drain slot, which is ideal when installing linear drains.

+ Technical Documents

+ Order a Custom Linear Shower Pan

Please Note: Custom Linear Shower Pans are not available as kits. Additional accessories, linear drains, and waterproofing must be purchased separately.

Order a Custom Linear Shower Slope

Step 1: Download the Order Form (save a copy to your desktop) - THEN fill out the form.
Step 2: Attach the form to an email addressed to: sales@kbrsinc.com OR Fax form to: (912)352-4204

custom linear shower pan center drain

Form 901-C
Download Form

custom linear shower pan left drain

Form 901-L
Download Form

custom linear shower pan right drain

Form 901-R
Download Form

custom linear shower pan

Form 900-G
Download Form


If you need help filling out a custom order form please call: 866-912-3211 or email: sales@kbrsinc.com


IMPORTANT:
1. Make sure you properly measure for your custom shower seat, we will not be able to return or exchange custom manufactured items. For more information on How to Measure for your Custom Linear Shower Slope Click Here >.

2. Please review our Terms & Conditions and Return Policy before ordering. Click Here to Review >

3. DO NOT submit "WHOLE" bathroom drawings.

4. DO NOT request a customer service representative to alter your drawing or measurements. ALL drawings must be completed by you.

5. DO NOT use adobe acrobat PRO - use only adobe reader to complete your form. Using Adobe Pro may result in your order form being submitted "blank" and you will need to resubmit it.
