36" x 72" Linear Shower Kit
Left Linear Drain Shower Pan & Installation Accessories
Stainless Steel Square Style Linear Drain
Free Shipping is for continental US only.
For Alaska, Hawaii, Canada, Mexico and the Caribbean please call:
(912) 352-0442 or (866)912-3211.

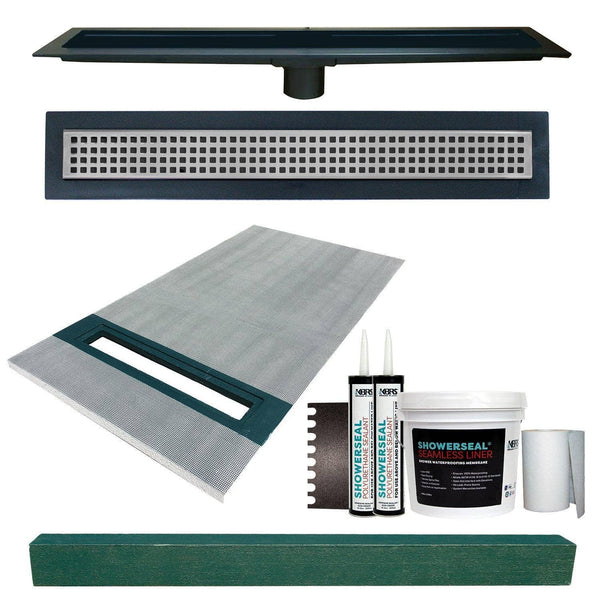

INCLUDED IN KIT:
36" x 72" Adjustable ShowerSlope™, 4" x 4" x 61" Adjustable HardCurb®,
ShowerSeal® Waterproofing Pack, 24" Linear Drain Grate, 26" Linear Drain ABS Body, and Trowel
CUSTOM LINEAR SHOWER OPTIONS:
Scroll down to download a custom linear shower order form.
Custom Linear Shower Pans are not available as kits, but additional accessories can be purchased separately.
To quote a custom linear shower pan, please submit an order form.
ABOUT THE LINEAR SLOPE KIT
The KBRS Linear Line is a rock-solid alternative to a field-sloped mortar bed. Once installed, the Linear ShowerSlope™ can be waterproofed using either a liquid-applied or bonded sheet-applied positive side membrane. Our linear shower pans are lightweight, yet will provide the superior strength and durability necessary for a successful tile shower installation.
WHATS IN THE KIT
• QTY 1 Cut-To-Fit / Adjustable Linear Shower Pan

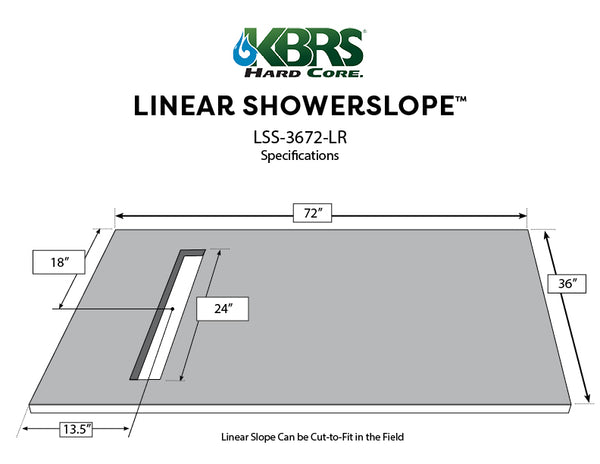

ShowerSlope™ Size - 36" x 72" (View Specs)
• QTY 1 Cut-to-Fit / Adjustable KBRS HardCurb®
HardCurb® - 4" x 4" x 61" (View Specs)
• QTY 1 KBRS Shower Waterproofing Kit
ShowerSeal® Seamless Liquid Liner Membrane (1 GAL. 50 S/F Coverage)
ShowerSeal® Polyurethane Sealant 2 - 10.1 OZ. Tubes
ShowerSeal® Gauging Fabric 6" x 75' Roll

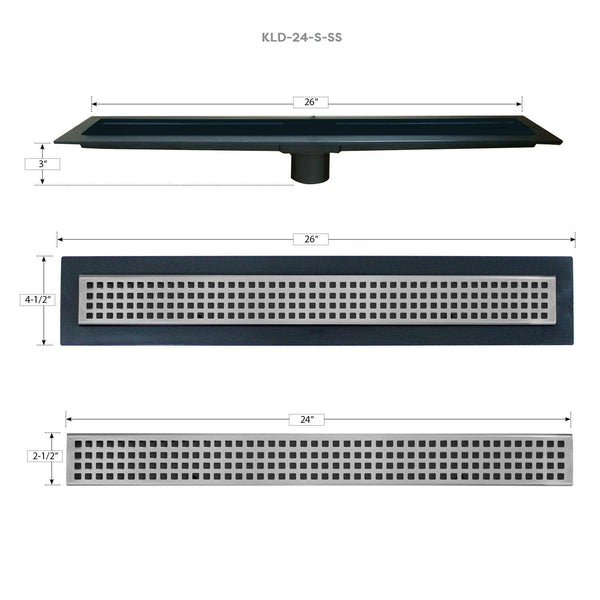

• QTY 1 Linear Shower Drain
Choose Your Linear Drain Option
• QTY 1 3/4" U-Notched Trowel (For Thin-Set Application)
DO NOT USE PREMIXED THIN-SET
USE ONLY QUALITY MODIFIED THIN-SET (not included)
ABOUT THE HARDCURB®
The KBRS HardCurb® (patented) is a real problem solver. When a tile shower curb is constructed using wood 2x4s or hollow pre-fabricated curbs, the screws that penetrate the curb to hold the shower’s glass enclosure in place can cause water leaks and curb swelling resulting in water damage and “tile-pop”. A KBRS HardCurb® has a solid EPS core that won’t allow leaks or swelling.
ABOUT THE WATERPROOFING
ShowerSeal® is a family of KBRS waterproofing products that when used together create a completely seamless water barrier for the entire shower. While all KBRS, Tile-Basin® shower bases are already pre-coated with our leak-free ShowerSeal® waterproofing membrane, using the KBRS ShowerSeal® family of products while installing your shower adds the highest level of waterproofing available for a leak-free shower installation that’s second to none.
Why Choose KBRS ShowerSeal® Liquid Linear:
- Fast & Easy Installation
- Waterproofing Pack Included
- No Sheet Liner to Puncture & Leak
- Cut-to-Fit in the Field
- Linear Drain Body & Grate Included
- Trowel Included
- Use Common Modified Thin-set
- Will Support Glass Block Walls
IMPORTANT: Linear drains are most commonly placed against the end or side wall or shower threshold; however they can be placed anywhere as long as there is a 1/4” per square foot slope to the drain. (Check with your local plumbing industry standards when attaching linear drain to existing plumbing).
The KBRS Linear Shower Pan Kit provides the required positive floor drainage in a tile shower assembly that will be utilizing a linear style shower drain. The KBRS Linear Line is a rock-solid alternative to a field-sloped mortar bed. Once installed, the Linear ShowerSlope™ can be waterproofed using either a liquid-applied or bonded sheet-applied positive side membrane. Our linear shower pans are lightweight, yet will provide the superior strength and durability necessary for a successful tile shower installation. KBRS Linear Line shower pans are easily installed using modified thin-set mortar. Linear shower pans are available in standard sizes and unlimited custom sizes (up to 9500 square inches). The KBRS Linear ShowerSlope™ comes with a 1-1/4" leading edge that is designed with a linear drain slot, which is ideal when installing linear drains.
+ Technical Documents
Linear Kit Installation Instructions
Linear ShowerSlope™ How to Measure
Linear ShowerSlope™ Schematics
Linear ShowerSlope™ Data Sheet
HardCurb® Data Sheet
ShowerSeal® Membrane Data Sheet
ShowerSeal® Poly Data Sheet
ShowerSeal® Gauging Fabric Data Sheet
ShowerSeal® Written Installation
ShowerSeal® Membrane MSDS
ShowerSeal® Poly MSDS
+ Order a Custom Linear Shower Pan
Please Note: Custom Linear Shower Pans are not available as kits. Additional accessories, linear drains, and waterproofing must be purchased separately.
Order a Custom Linear Shower Slope
Step 1: Download the Order Form (save a copy to your desktop) - THEN fill out the form.
Step 2: Attach the form to an email addressed to: firstname.lastname@example.org OR Fax form to: (912)352-4204
If you need help filling out a custom order form please call: 866-912-3211 or email: email@example.com
1. Make sure you properly measure for your custom shower seat, we will not be able to return or exchange custom manufactured items. For more information on How to Measure for your Custom Linear Shower Slope Click Here >.
3. DO NOT submit "WHOLE" bathroom drawings.
4. DO NOT request a customer service representative to alter your drawing or measurements. ALL drawings must be completed by you.
5. DO NOT use adobe acrobat PRO - use only adobe reader to complete your form. Using Adobe Pro may result in your order form being submitted "blank" and you will need to resubmit it.
